Certificate Management

Lankir aggregates certificates from multiple sources for signing PDFs.

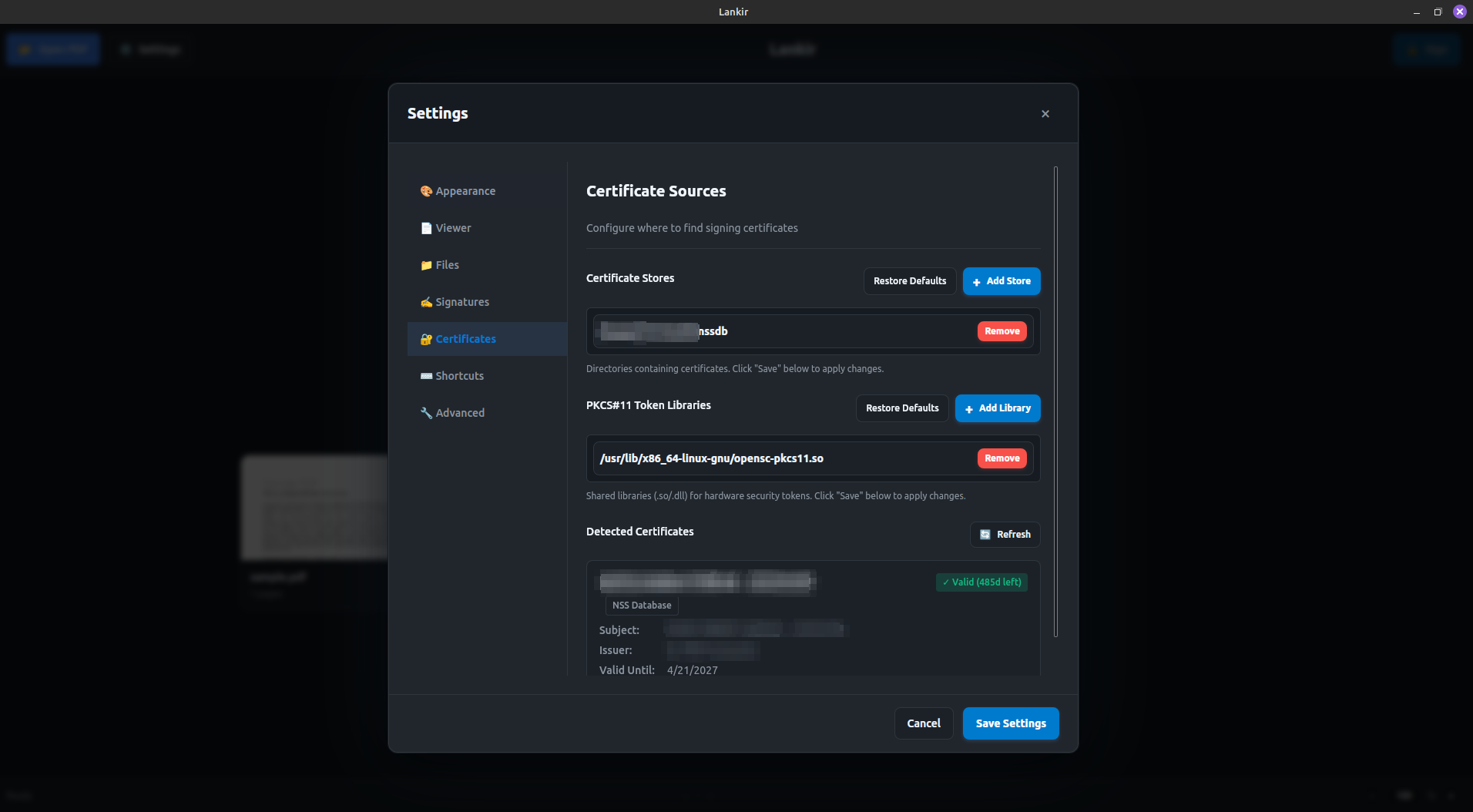

Certificate management interface

Certificate list showing certificates from multiple sources

Certificate Sources

PKCS#12 Files (.p12, .pfx)

Personal certificate files containing both the certificate and private key, protected by a password.

Default search locations:

  • /etc/ssl/certs (system)

  • ~/.pki/nssdb (user)

Adding custom directories:

# View current stores
lankir config get certificateStores

# Add a directory (must be absolute path in allowed locations)
# Edit ~/.config/lankir/config.json directly

PKCS#11 (Hardware Tokens)

Smart cards, USB tokens, and HSMs accessed via PKCS#11 modules.

Auto-detected modules:

  • /usr/lib/x86_64-linux-gnu/pkcs11/p11-kit-client.so (p11-kit proxy)

  • /usr/lib/x86_64-linux-gnu/opensc-pkcs11.so (OpenSC)

Adding custom modules:

# View current modules
lankir config get tokenLibraries

# Modules must have .so extension and exist on the filesystem

NSS Database (Firefox/Chrome)

Lankir reads certificates from browser certificate stores:

  • ~/.mozilla/firefox/*/cert9.db

  • ~/.pki/nssdb/cert9.db

These are automatically discovered—no configuration needed.

Listing Certificates

All Certificates

lankir cert list

# Output:
# Found 3 certificate(s):
#
# Certificate 1:
#   Name:          John Doe
#   Subject:       John Doe
#   Issuer:        Example CA
#   Valid From:    2024-01-01 00:00:00
#   Valid To:      2025-12-31 23:59:59
#   Fingerprint:   a1b2c3d4e5f6...
#   Source:        pkcs12
#   Valid:         true
#   Can Sign:      true

Filtered Lists

# Only valid (non-expired) certificates
lankir cert list --valid-only

# Filter by source
lankir cert list --source pkcs11
lankir cert list --source pkcs12
lankir cert list --source nss

# Search by name/subject/issuer
lankir cert search "john"

# JSON output
lankir cert list --json

Show All Details

By default, only the first 20 certificates are shown:

# Show all certificates
lankir cert list --all

Certificate Properties

Property

Description

name

Common name or filename

subject

Certificate subject DN

issuer

Issuer’s common name

serialNumber

Unique serial number

validFrom

Start of validity period

validTo

End of validity period

fingerprint

SHA-256 hash (unique identifier)

source

Where certificate was found

keyUsage

Allowed operations

isValid

Currently within validity period

canSign

Has digital signature capability

requiresPin

PIN needed for signing

filePath

File location (for PKCS#12)

pkcs11Module

Module path (for PKCS#11)

Certificate Requirements

For signing PDFs, certificates must have:

  1. Digital Signature key usage - The certificate must allow signing

  2. Valid dates - Current time within NotBefore and NotAfter

  3. Private key access - Either embedded (PKCS#12) or accessible (PKCS#11)

Check signing capability:

lankir cert list --valid-only | grep "Can Sign"

PKCS#12 Certificate Files

Creating a Self-Signed Certificate

For testing purposes:

# Generate private key and certificate
openssl req -x509 -newkey rsa:2048 \
  -keyout key.pem -out cert.pem \
  -days 365 -nodes \
  -subj "/CN=Test User/O=Test Org"

# Package as PKCS#12
openssl pkcs12 -export \
  -in cert.pem -inkey key.pem \
  -out test.p12 -name "Test Certificate"

Importing Certificates

Place .p12 or .pfx files in a configured certificate store directory:

# Copy to user certificate directory
cp mycert.p12 ~/.pki/nssdb/

Or add your certificate directory to the configuration.

Hardware Token Setup

Smart Card Readers

  1. Install PC/SC daemon:

    sudo apt install pcscd pcsc-tools  # Debian/Ubuntu

  2. Start service:

    sudo systemctl enable --now pcscd

  3. Verify card detection:

    pcsc_scan

Common PKCS#11 Modules

Token Type

Module Path

Generic (p11-kit)

/usr/lib/x86_64-linux-gnu/pkcs11/p11-kit-client.so

OpenSC (most cards)

/usr/lib/x86_64-linux-gnu/opensc-pkcs11.so

YubiKey

/usr/lib/x86_64-linux-gnu/libykcs11.so

SafeNet

/usr/lib/libeToken.so

SoftHSM (testing)

/usr/lib/softhsm/libsofthsm2.so

Testing PKCS#11 Access

# List slots with p11tool
p11tool --list-tokens

# List certificates on token
p11tool --list-all-certs "pkcs11:token=MyToken"

Browser Certificate Import

From Firefox

Firefox certificates are automatically detected. To manually export:

  1. Firefox → Preferences → Privacy & Security → Certificates → View Certificates

  2. Your Certificates tab → Select certificate → Backup

  3. Save as .p12 file

From Chrome

Chrome uses the NSS database in ~/.pki/nssdb/:

# List certificates in Chrome's NSS database
certutil -d sql:$HOME/.pki/nssdb -L

# Export a certificate
pk12util -d sql:$HOME/.pki/nssdb -o output.p12 -n "Certificate Name"

Troubleshooting

Certificate Not Showing

  1. Check source is configured:

    lankir config get certificateStores
lankir config get tokenLibraries

  2. Verify file permissions:

    ls -la ~/.pki/nssdb/

  3. For PKCS#11, check service:

    sudo systemctl status pcscd

“Certificate cannot sign”

The certificate lacks digital signature key usage:

# Check key usage
openssl x509 -in cert.pem -text | grep -A1 "Key Usage"

Wrong Password

  • PKCS#12: The password protects the file

  • PKCS#11: The PIN protects the token

  • NSS: May require the master password

Certificate Expired

Check validity:

lankir cert list | grep -A2 "Valid"

Renew your certificate with your certificate authority.

Security Best Practices

  1. Protect PKCS#12 files - Use strong passwords, restrict file permissions

  2. Hardware tokens preferred - Private keys never leave the device

  3. Regular rotation - Renew certificates before expiration

  4. Audit certificate usage - Monitor which certificates are used
